Frame Dimensions

More
10 years 2 months ago #35832 by gary bauer
Frame Dimensions was created by gary bauer
Does anybody know where I can find a copy of the frame dimensions for the X 1/9 cars? I am assuming that the dimensions would be the same for all the different years. The only thing that I can find is the copy that I attached to this post and as you can see much of it is illegible

Please Log in or Create an account to join the conversation.

More
10 years 2 months ago #35833 by Andy Rowley
Replied by Andy Rowley on topic Frame Dimensions
Which dimensions are you after in particular?
Blue Gran Finale F100FAW
As seen in Classic & Sports car....
As seen in Auto Italia.....
As seen on Fifth Gear....!!!!
Lido ALF 704S

Please Log in or Create an account to join the conversation.

More
10 years 2 months ago #35834 by gary bauer
Replied by gary bauer on topic Frame Dimensions
Not looking for any certain dimensions in particular, just looking for a clean copy of this frame dimension chart.

Please Log in or Create an account to join the conversation.

More
10 years 2 months ago #35835 by Pete Pearson
Replied by Pete Pearson on topic Frame Dimensions

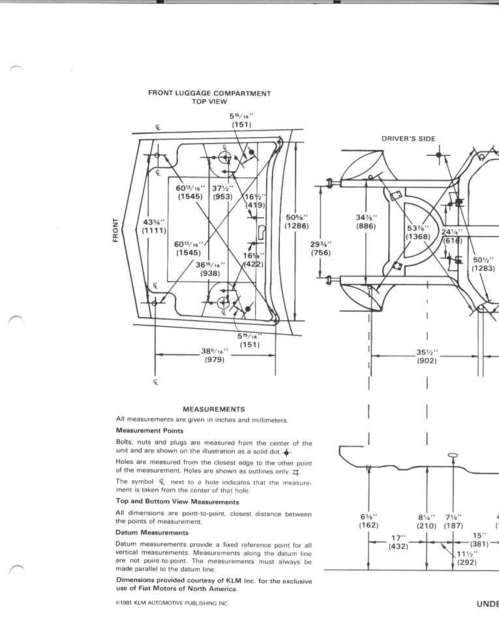

Try these:


[IMG


[IMG


If you pm me your email I can send you the original files.

Pete
