Series 1 front indicator

More
5 years 1 month ago - 5 years 1 month ago #41922 by NRG
Series 1 front indicator was created by NRG
Does anybody have one of these they wish to sell?

[img

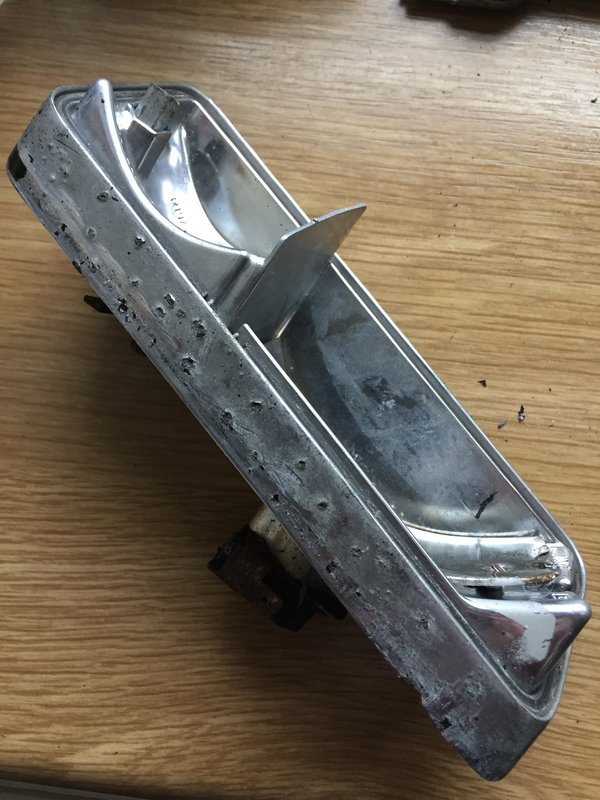

It’s the mounting screw for the series 1 front indicators...if not a good condition complete unit with them intact? Mine is a bit ropey

[img


Many thanks
Last edit: 5 years 1 month ago by NRG.

Please Log in or Create an account to join the conversation.

More
5 years 1 month ago #41926 by Michael
Replied by Michael on topic Series 1 front indicator
If you go to a company called boltbase.co.uk they will sell you threaded bar,the though and through nuts and the chrome domed nuts. That’s what I did

Please Log in or Create an account to join the conversation.

More
5 years 1 month ago #41937 by NRG
Replied by NRG on topic Series 1 front indicator
Thanks for the suggestion. I've ordered some 12/15mm M4 nickel plated hex standoffs from eBay and a length of M5 threaded stainless rod. The idea is to drill and tap 3mm of the standoff for the M5 rod to thread into so it resembles the OEM part. I'll post how it goes when the bits get here.

Please Log in or Create an account to join the conversation.

More
5 years 1 month ago - 5 years 1 month ago #41939 by NRG
Replied by NRG on topic Series 1 front indicator

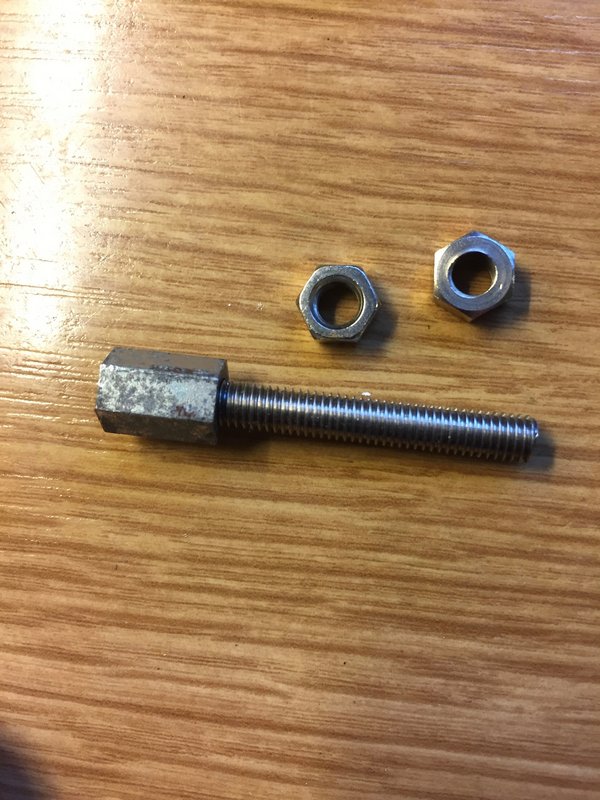

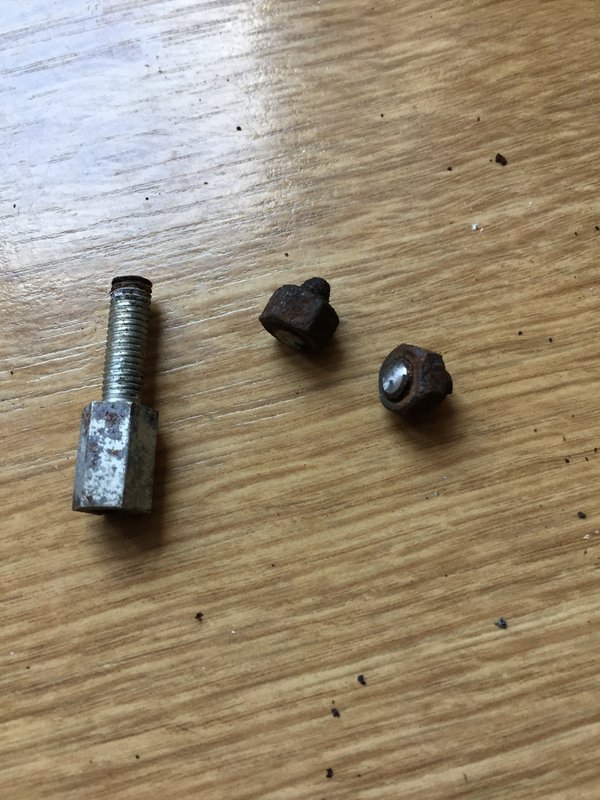

The Hex standoffs where not correct so to make it easier I just cut off the broken stud and counter drilled the hex part 5mm and tapped the hole M5 x 0.8

The M4 lens screw only goes in by 5/6mm so leaves enough depth to counter drill 5mm or so and tap. Stud length needs to be ~37mm in length. Posting here in case it helps anybody else.


[img


[img


[img
Last edit: 5 years 1 month ago by NRG.
